Codaca’s CPQX Series Improving Power Efficiency in Power Supply Applications

CODACA's high current power inductor CPQX series designed with low loss magnetic core features excellent soft saturation characteristics to withstand higher peak currents, with a saturation current up to 240A. It’s winding by flat wire with low DC resistance and high current, achieving low temperature rise and high efficiency. The inductance value and DC bias characteristics are less affected by temperature making it ideal for working stably in high temperature up to +155 ℃ with no thermal aging problem.

The through-hole design of three terminals increases the welding strength resulting in excellent anti-vibration ability.The compact design save PCB space, achieving maximum output power in a small size and widely used in high-power density power supply systems.

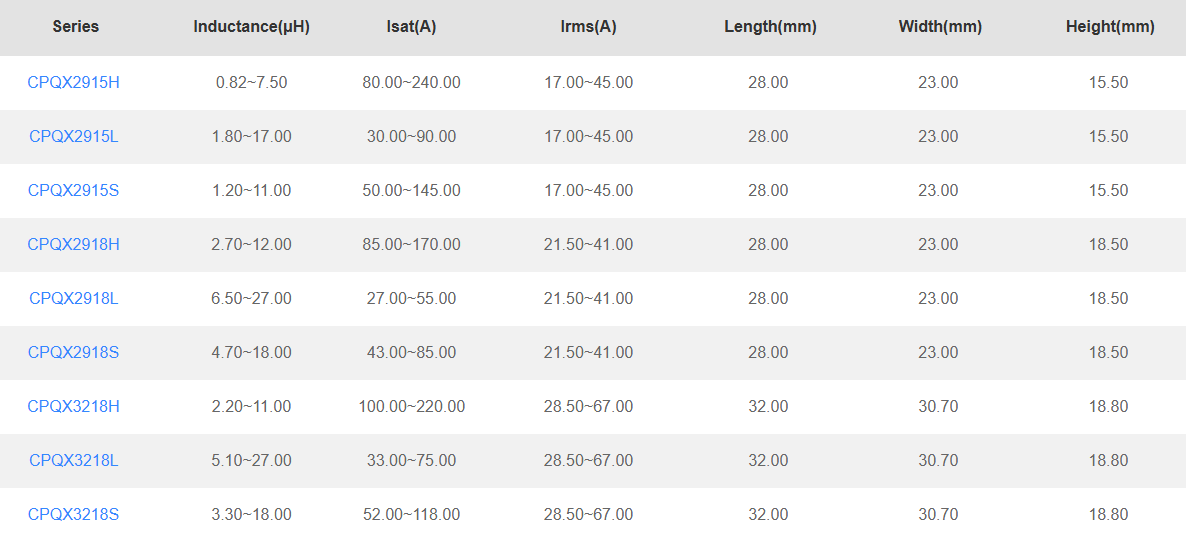

Features:
● Flat wire, low DCR
● Compact design, saves PCB space
● Magnetic shielded structure, reduce EMI
● Excellent DC bias capability, handle peak current
● Inductance value and DC bias, less affected by temperature

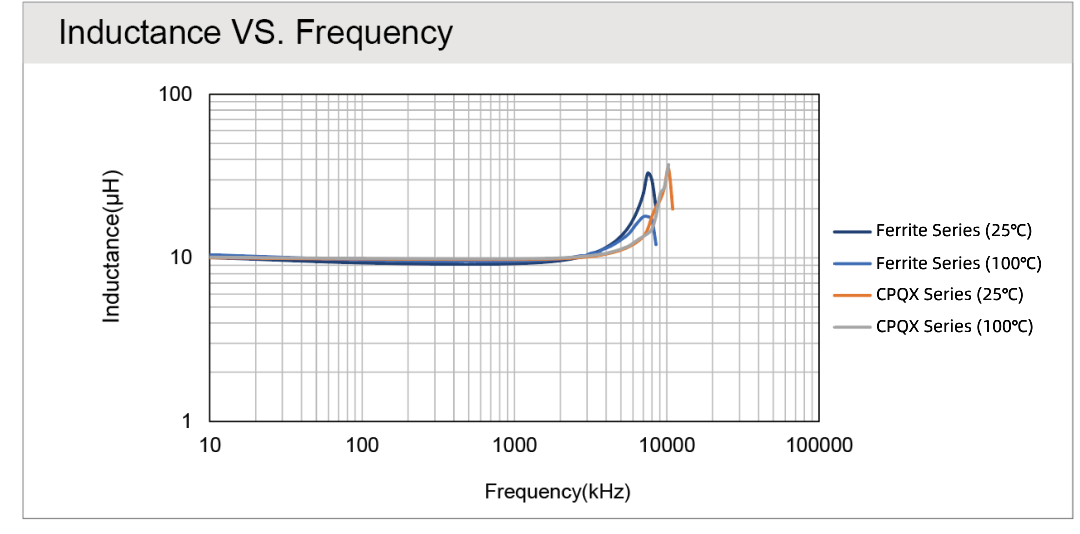

CPQX and ferrite series inductance temperature stability test

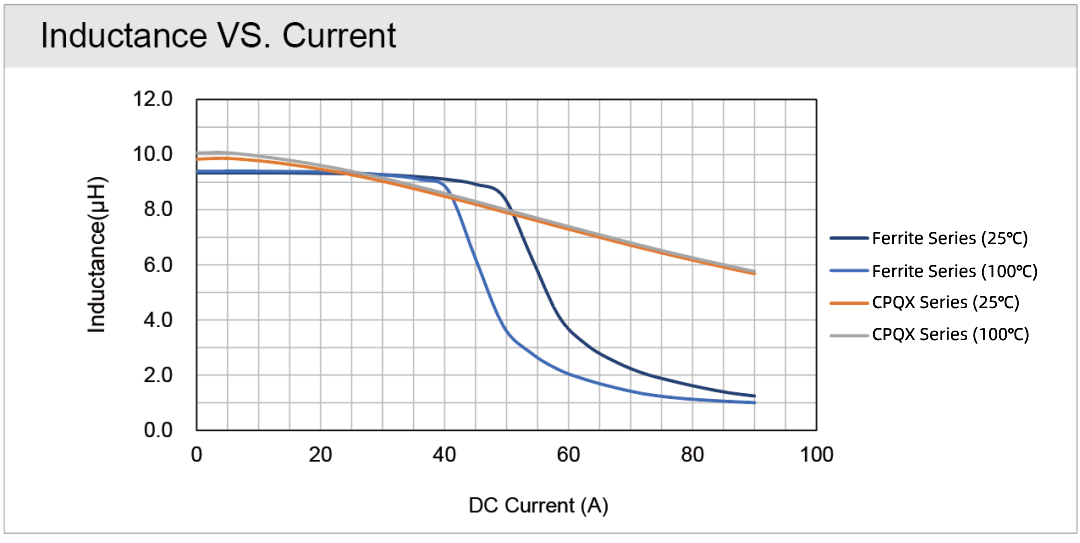

CPQX and ferrite series saturation current temperature stability test

Applications:
◾ DC-DC converters
◾ New energy
◾ Industrial control
◾ High current switching regulators
